Can You Depend On Your Files?

By Debbie Gallagher

ave you ever spent time trying to solve an apparent data or program problem on your AS/400, only to find out that your logical file was based on the wrong physical file? How much time did you spend before you figured it out? How much damage was done to your production data before you discovered the problem?

You can search for this type of file dependency problem routinely and find it before it becomes a bigger issue.

Standard File Placement

My assumption is that when you create logical and physical files destined for production libraries, you have a standard placement for these files. For instance, many companies like to have physical files and their associated logical files in the same library. I am going to assume for the purposes of my examples throughout this article that you always place your payroll files (both physical and logical) in a library called PAYFILES.

Check for Two Problems

For each library you analyze, it will be necessary to check for two file dependency problems. If you have physical and logical files in the same library, and check in only one of the following ways, you could easily miss about half of the problems that could occur.

First, look for situations where the physical file is in the library you are analyzing (PAYFILES in this example), but the logical file is in a different library.

Second, check for cases where the logical file is in the library being examined (PAYFILES), but its physical file is in a different library.

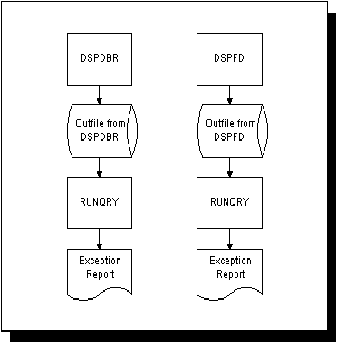

Create the First File

Use command DSPDBR and direct the output to a file. For example:

FILE(PAYFILES/*ALL) OUTPUT(*OUTFILE)
OUTFILE(mylib/myfile)

Create the First Report

The record format for the DSPDBR outfile will be QWHDRDBR. Use the select records feature of query to print any records in the file where the library name for the physical file is not the same as the library name for the logical file. There will be an exception for situations where the physical file has no logical file, and therefore the library specified for the logical file is blank. In the situation I have assumed, the query select records tests would be:

WHRLI  NE  WHRELI
AND WHRELI NE ' '

Create the Second File

Use command DSPFD with the output sent to a file. For example:

DSPFD
FILE(PAYFILES/*ALL)
TYPE(*MBR)

OUTPUT(*OUTFILE)
FILEATR(*LF) OUTFILE(mylib/myfile2)

Create the Second Report

The record format for the second file will be QWHFDMBR. Use the select records feature of query to print any records in the file where the library name for the logical file is not the same as the library name for the physical file.

In the situation I have assumed, the query select records test would be:

MBLIB  NE  MBBOL

Since each *LF must have a *PF, there is no need to check for blanks.

Authority for DSPDBR and DSPFD

The AS/400 will provide information for only the files to which you have sufficient authority. You will need to ensure that you have enough authority to obtain information on all of the files in the library being analyzed. It is unlikely that you will be able to have access to the QSECOFR password every time you want to check your file dependencies.

It is preferable to create commands and command-processing programs which adopt QSECOFR authority. Create new commands and command-processing programs called, for instance DSPDBRALL and DSPFDALL. Have the security officer compile these new objects with USRPRF(*OWNER) and make the owner QSECOFR. When you use the commands DSPDBRALL and DSPFDALL, you will get information reported on all files in the requested library, but will not have permanent access to them or their contents.

Use the Reports

Because record selection tests were used in the queries, your reports will include only those situations where the physical and associated logical file are not in the same library. Consider using this method of checking file dependencies whenever promotions to production involve file changes. You could also use it routinely to find problems before they occur. Maybe then, you really could depend on your logical files! T < G
